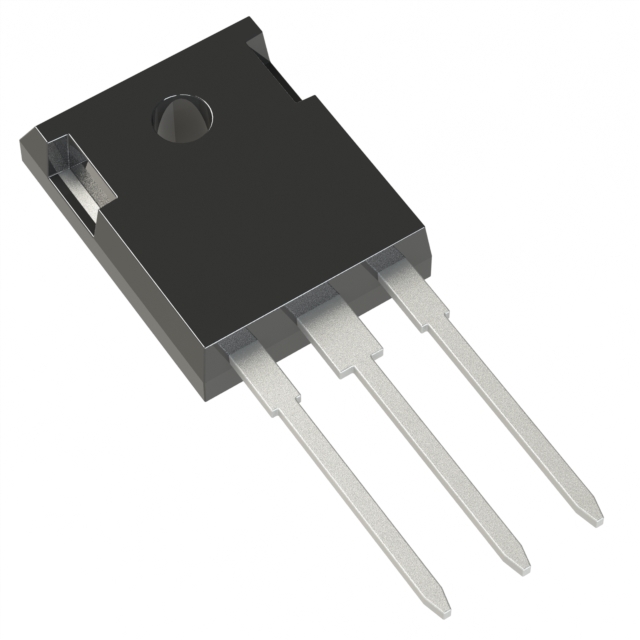

WNSC2M1K0170W-CN

WNSC2M1K0170W-CN

Brand Part Number
WNSC2M1K0170W-CN
Product Categories
Single FETs, MOSFETs
Manufacturer
ChipNobo
Describe
MOSFET N-CH 1700V 5A TO-247-3
Encapsulation
TO-247-3
Package
Tube
Delivery time :
2-3Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 30
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
30
$1.3792
$41.3760
90
$1.3516
$121.6440
210
$1.3246
$278.1660
750
$1.2981
$973.5750
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series HEXFET®
Package Tube
Product Status ACTIVE
Package / Case TO-247-3
Mounting Type Surface Mount
Operating Temperature -55°C ~ 150°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 5 A (Tc)
Rds On (Max) @ Id, Vgs 1.4 Ohm @ 2 A, 20 V
Power Dissipation (Max) 69 W (Tc)
Vgs(th) (Max) @ Id 4 V @ 0.5 mA
Supplier Device Package TO-247-3
Drive Voltage (Max Rds On, Min Rds On) 20 V
Vgs (Max) -10~25 V
Drain to Source Voltage (Vdss) 1700 V
Gate Charge (Qg) (Max) @ Vgs 22 nC @ -5/20 V
Input Capacitance (Ciss) (Max) @ Vds 215 pF @ 1000 V
