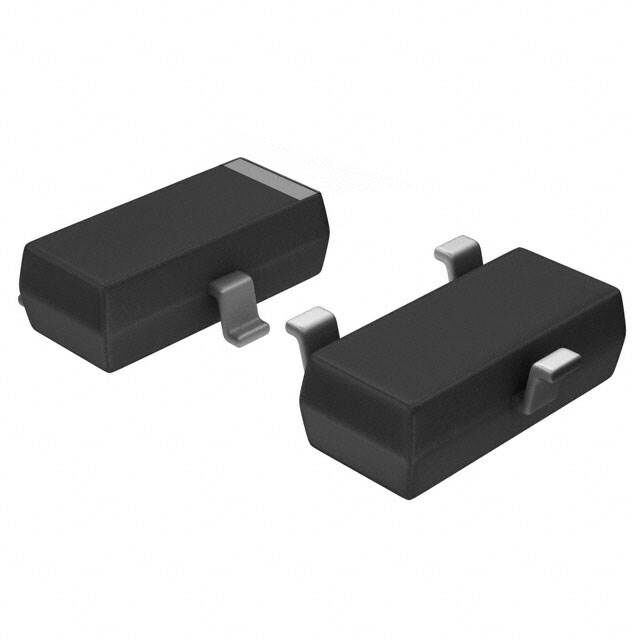

SI2323DS-T1-GE3-CN

SI2323DS-T1-GE3-CN

Brand Part Number
SI2323DS-T1-GE3-CN
Product Categories
Single Bipolar Transistors
Manufacturer
ChipNobo
Describe
MOSFET P-CH -20V -6A SOT-23
Encapsulation
SOT-23
Package
Tape & Reel (TR)
Delivery time :
2-3Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 3000
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
3000
$0.2160
$648.0000
9000
$0.2117
$1,905.3000
21000
$0.2075
$4,357.5000
75000
$0.2033
$15,247.5000
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series TrenchFET®
Package Tape & Reel (TR)
Product Status ACTIVE
Package / Case SOT-23
Mounting Type Surface Mount
Operating Temperature -55°C ~ 150°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type P-Channel
Current - Continuous Drain (Id) @ 25°C -6A
Rds On (Max) @ Id, Vgs 36mOhm @ -4A, -4.5V
Power Dissipation (Max) 1.6W (Tc)
Vgs(th) (Max) @ Id -1V @ -250µA
Supplier Device Package SOT-23
Drive Voltage (Max Rds On, Min Rds On) -2.5V, -4.5V
Vgs (Max) ±12V
Drain to Source Voltage (Vdss) -20 V
Gate Charge (Qg) (Max) @ Vgs 17.7 nC @ -10 V
Input Capacitance (Ciss) (Max) @ Vds 673 pF @ -10 V
