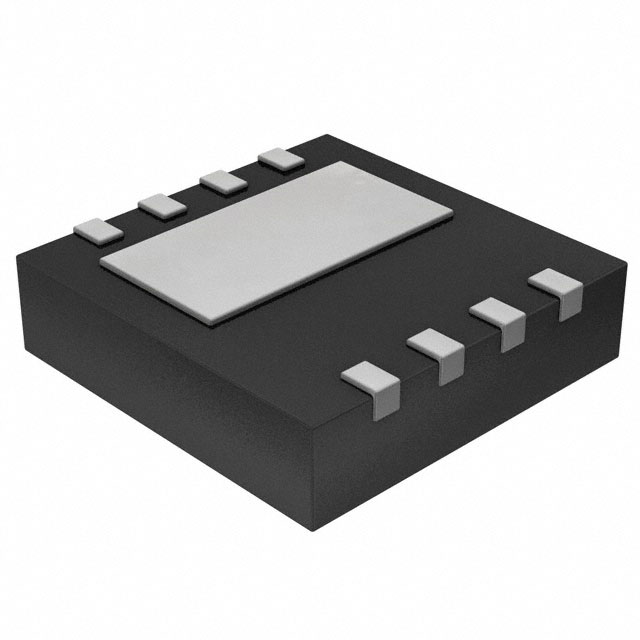

IGLD60R190D1-CN

IGLD60R190D1-CN

Brand Part Number
IGLD60R190D1-CN
Product Categories
Single FETs, MOSFETs
Manufacturer
ChipNobo
Describe
GAN N-CH 800V 11.5A DFN8X8
Encapsulation
DFN8X8
Package
Tape & Reel (TR)
Delivery time :
6-8Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 5000
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
5000
$2.1937
$10,968.5000
15000
$2.1498
$32,247.0000
35000
$2.1068
$73,738.0000
125000
$2.0647
$258,087.5000
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series CoolGaN™
Package Tape & Reel (TR)
Product Status ACTIVE
Package / Case DFN8X8
Mounting Type Surface Mount
Operating Temperature -55°C-175°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 11.5A (Tc)
Rds On (Max) @ Id, Vgs 190mOhm @ 3.9A, 6V
Power Dissipation (Max) 83W (Tc)
Vgs(th) (Max) @ Id 2.5V @ 12.2mA
Supplier Device Package DFN8X8
Drive Voltage (Max Rds On, Min Rds On) 6V
Vgs (Max) -1.4V to +7V
Drain to Source Voltage (Vdss) 800 V
Gate Charge (Qg) (Max) @ Vgs 2.8 nC @ 0 to 6 V
Input Capacitance (Ciss) (Max) @ Vds 96 pF @ 400 V
