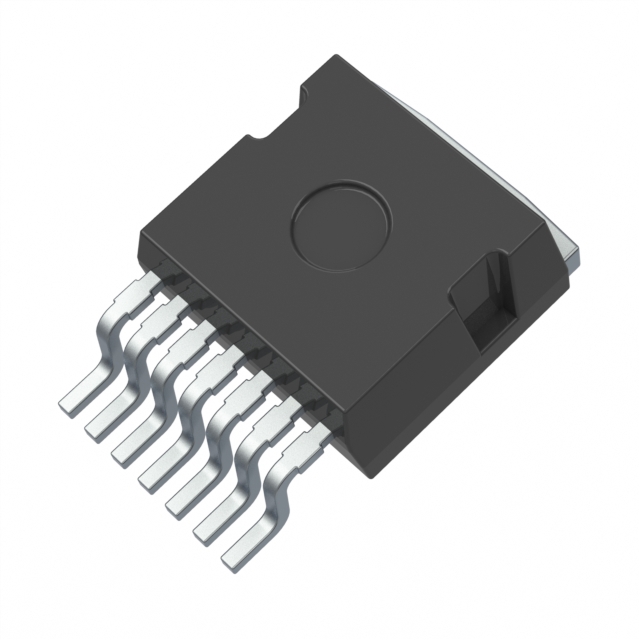

C3M0040120J1-CN

C3M0040120J1-CN

Brand Part Number
C3M0040120J1-CN
Product Categories
Single FETs, MOSFETs
Manufacturer
ChipNobo
Describe
1200V 40 M SIC MOSFET
Encapsulation
TO-263-7
Package
Tape & Reel (TR)
Delivery time :
4-6Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 4000
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
4000
$7.6560
$30,624.0000
12000
$7.5029
$90,034.8000
28000
$7.3528
$205,878.4000
100000
$7.2058
$720,580.0000
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series C3M™
Package Tape & Reel (TR)
Product Status ACTIVE
Package / Case TO-263-7
Mounting Type Surface Mount
Operating Temperature -40°C ~ 150°C (TJ)
Technology SiCFET (Silicon Carbide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 64A (Tc)
Rds On (Max) @ Id, Vgs 53.5mOhm @ 33.3A, 15V
Power Dissipation (Max) 272W (Tc)
Vgs(th) (Max) @ Id 3.6V @ 9.2mA
Supplier Device Package TO-263-7
Drive Voltage (Max Rds On, Min Rds On) 15V
Vgs (Max) +15V, -4V
Drain to Source Voltage (Vdss) 1200 V
Gate Charge (Qg) (Max) @ Vgs 94 nC @ 15 V
Input Capacitance (Ciss) (Max) @ Vds 2900 pF @ 1000 V
