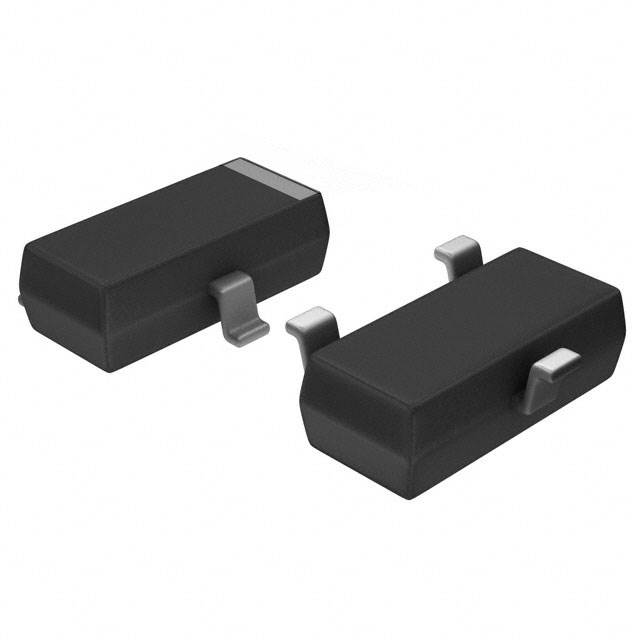

C2N7002K-Q

C2N7002K-Q

Brand Part Number
C2N7002K-Q
Product Categories
Single FETs, MOSFETs
Manufacturer
ChipNobo
Describe
MOSFET N-CH 60V 300MA SOT-23
Encapsulation
SOT-23
Package
Tape & Reel (TR)
Delivery time :
4-5Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 3000
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
3000
$0.0115
$34.5000
9000
$0.0113
$101.7000
21000
$0.0111
$233.1000
75000
$0.0108
$810.0000
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series Single FETs, MOSFETs
Package Tape & Reel (TR)
Product Status ACTIVE
Package / Case SOT-23
Mounting Type Surface Mount
Operating Temperature -55°C ~ 150°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 300mA (Ta)
Rds On (Max) @ Id, Vgs 3Ohm @ 500mA, 10V
Power Dissipation (Max) 350mW (Ta)
Vgs(th) (Max) @ Id 2.5V @ 250µA
Supplier Device Package SOT-23
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs (Max) ±20V
Drain to Source Voltage (Vdss) 60 V
Input Capacitance (Ciss) (Max) @ Vds 50 pF @ 25 V
