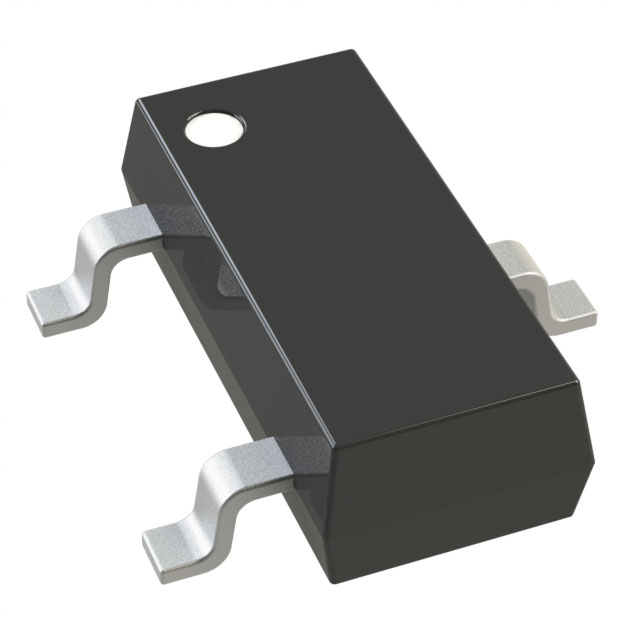

AP2310GN-HF-3-CN

AP2310GN-HF-3-CN

Brand Part Number
AP2310GN-HF-3-CN
Product Categories
Single FETs, MOSFETs
Manufacturer
ChipNobo
Describe
MOSFET N-CH 60V 3A SOT-23
Encapsulation
SOT-23
Package
Tape & Reel (TR)
Delivery time :
3-4Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 3000
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
3000
$0.0202
$60.6000
9000
$0.0198
$178.2000
21000
$0.0194
$407.4000
75000
$0.0191
$1,432.5000
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series TrenchFET®
Package Tape & Reel (TR)
Product Status ACTIVE
Package / Case SOT-23
Mounting Type Surface Mount
Operating Temperature -50°C ~ 150°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type P-Channel
Current - Continuous Drain (Id) @ 25°C 3A (Tc)
Rds On (Max) @ Id, Vgs 105mOhm @ 3A, 10V
Power Dissipation (Max) 350mW (Ta)
Vgs(th) (Max) @ Id 2V @ 250µA
Supplier Device Package SOT-23
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs (Max) ±20V
Drain to Source Voltage (Vdss) 60 V
Gate Charge (Qg) (Max) @ Vgs 6 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds 247 pF @ 30 V
