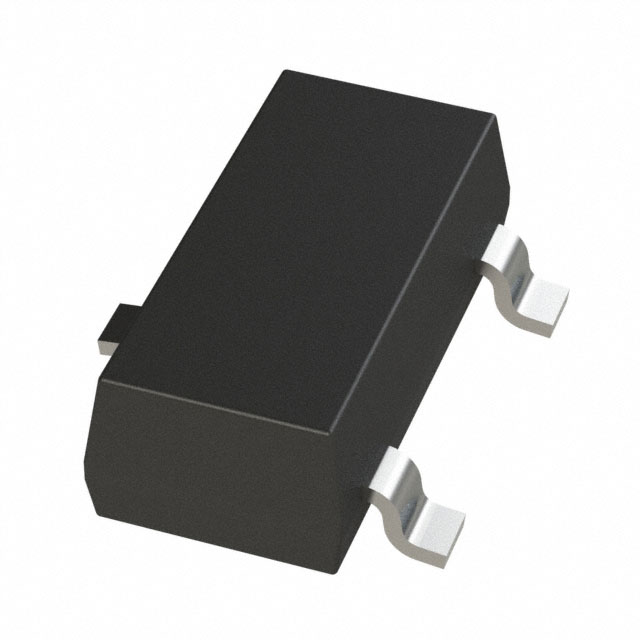

2N7002A

2N7002A

Brand Part Number
2N7002A
Product Categories
Single FETs, MOSFETs
Manufacturer
ChipNobo
Describe
MOSFET SOT-23 N 60V 2OHM 150C
Encapsulation
SOT-23
Package
Tape & Reel (TR)
Delivery time :
2-3Weeks
ROHS status
YES
Data sheet
In Stock
Standard Pack Quantity : 3000
Quantity
Unit price
Price
Buy it now
Quantity
Unit price
Amount to
3000
$0.0084
$25.2000
9000
$0.0082
$73.8000
21000
$0.0081
$170.1000
75000
$0.0079
$592.5000
msg
msg
msg
msg
msg
msg
msg
msg
Product Props
TYPE DESCRIPTION
Mfr ChipNobo
Series Single FETs, MOSFETs
Package Tape & Reel (TR)
Product Status ACTIVE
Package / Case SOT-23
Mounting Type Surface Mount
Operating Temperature 150°C (TJ)
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 280mA (Ta)
Rds On (Max) @ Id, Vgs 2Ohm @ 500mA, 10V
Power Dissipation (Max) 350mW (Ta)
Vgs(th) (Max) @ Id 2.5V @ 250µA
Supplier Device Package SOT-23
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
Vgs (Max) ±30V
Drain to Source Voltage (Vdss) 60 V
Input Capacitance (Ciss) (Max) @ Vds 50 pF @ 25 V
